1000-1500 PCs/hr Small Egg Tray Machine
| Model | SL-3*1, SL-4*1 |
| Capacity | 1000-1500pcs/h |
| Water consumption | 300kg/h-380kg/h |
| Paper consumption | 120-160kg/h |
| Electricity consumption | 32kw/h-45kw/h |
| Worker qty | 3-4 |
| Warranty | 12 months |
You can now ask our project managers for technical details

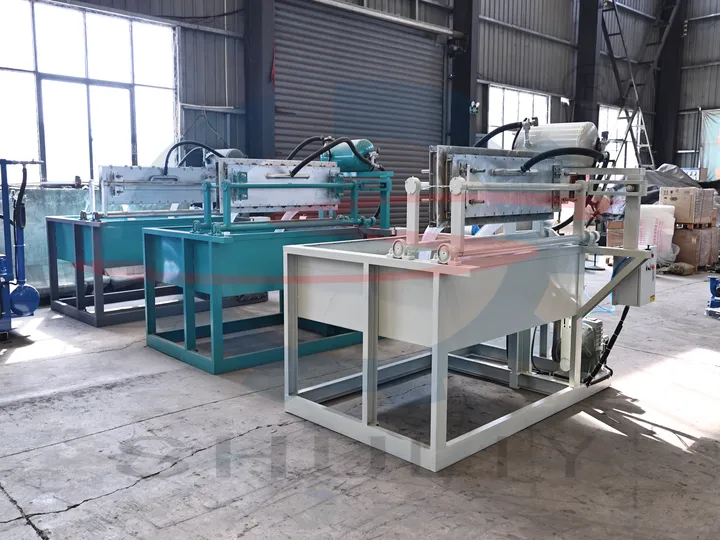

The small egg tray machine, also called a single-sided egg tray machine, mainly uses waste paper, cardboard, old books, and other fiber materials. It produces various egg trays, such as 30-hole and 20-hole trays, with an output of 1,000–1,500 pieces per hour through pulp molding.

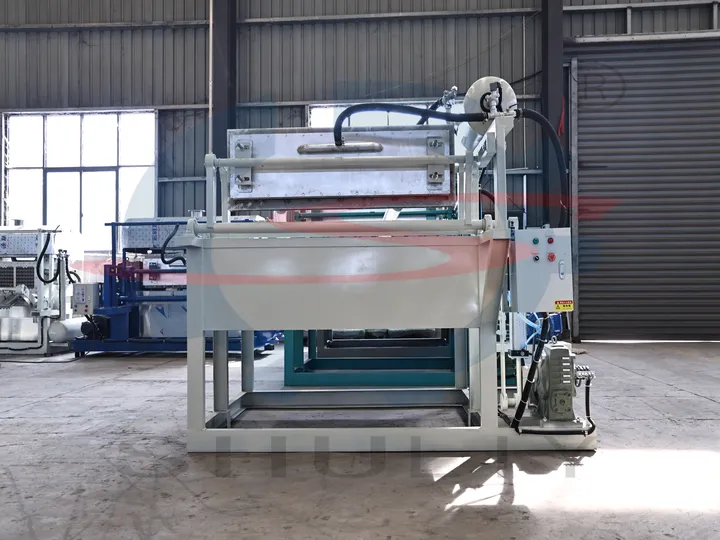

This small egg tray machine is ideal for small poultry farms, large-scale chicken farms, and start-up egg processing businesses. It has low output, low investment, low energy consumption, and is easy to operate. With a fast return on investment, it is the first choice for many users and is popular in over 50 countries, including Nigeria, Brazil, Cuba, Colombia, Russia, Saudi Arabia, Morocco, Ghana, and South Africa.
Shuliy’s best-selling small egg tray making machines are the SL-3*1 and SL-4*1. Below, I will introduce these two models in detail.
Why Is This Small Egg Tray Machine Also Called a Single-Side Egg Tray Making Machine?
This small egg tray machine is also known as a single-side egg tray making machine because it is equipped with only one forming mold and one transfer mold. All wet egg trays complete the pulp suction, molding, and demolding processes on the same side. This compact egg tray machine can close the molds 6–8 times per minute, with an output of 18–32 trays per minute.
Compared with multi-side machines (such as four-side, eight-side, or twelve-side machines), the single-side egg tray machine features a simpler structure, smaller footprint, and lower energy consumption. Therefore, it is an ideal choice for poultry farms and small businesses looking to upgrade from old egg tray production equipment.
Due to its single-side molding process, the production output per cycle is moderate, reaching approximately 1,000–1,500 pieces per hour. In addition, this machine is easy to operate and requires less maintenance, making it suitable for beginners and small-scale egg tray production projects.
Raw Materials for Egg Tray Production
Small egg tray machines mainly use fiber materials such as waste paper, kraft paper, corrugated paper, and cardboard as raw materials. The production process mainly involves physical processing, including pulping, molding, and drying, to finally produce finished egg trays. Generally, the weight of one egg tray is about 60–80 g. According to calculations from the Shuliy factory, one ton of waste paper can produce approximately 12,000 egg trays, making this solution highly attractive for businesses seeking a fast return on investment. In many cases, the investment can be recovered within about one week.
According to customer requirements, waterproofing agents or strengthening additives can be added to the pulp to improve the moisture resistance and durability of the trays. These additives remain stable in the products after drying and do not cause chemical reactions, discoloration, or unpleasant odors.
Therefore, both the raw materials and the production process are environmentally friendly. Egg trays are fully biodegradable, do not cause secondary pollution, and meet the growing demand for sustainable and eco-friendly packaging solutions.

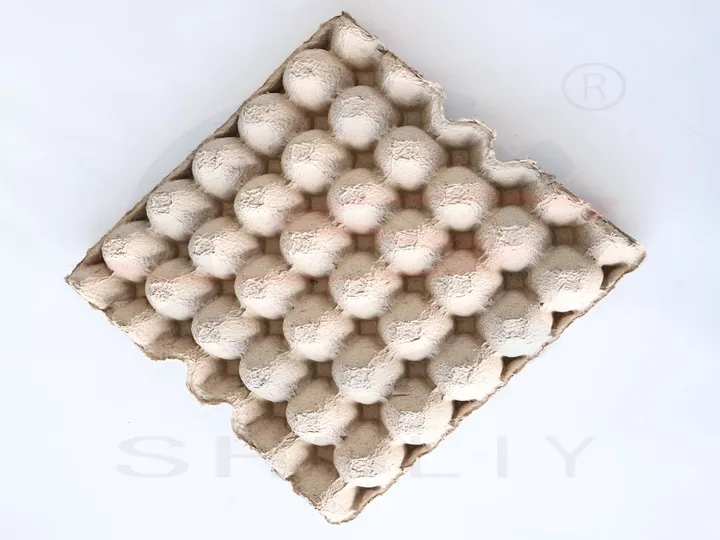

What Finished Products Can Shuliy Small Egg Tray Machines Produce?
How Does a Small Pulp Molding Egg Tray Machine Make Egg Trays?
The small pulp molding egg tray machine works mainly through four steps: pulping, molding, demolding, and drying. First, waste paper, corrugated paper, and other raw materials are mixed with water in the right ratio to make a uniform pulp. Stirring and beating ensure the fibers are fully dispersed.
Next, the pulp is delivered to a single-sided forming mold. Under vacuum suction, the pulp evenly attaches to the mold surface, quickly forming a wet egg tray. The wet tray is then demolded and sent to the drying system (air drying or drying room) to remove moisture, producing strong, flat, and uniform egg trays.
The whole process is physical, without harmful chemicals, making it environmentally friendly and efficient. Each cycle can produce multiple trays at once, with low water and paper consumption, making it ideal for small-scale, high-efficiency production.
Types of Small Egg Tray Making Machines

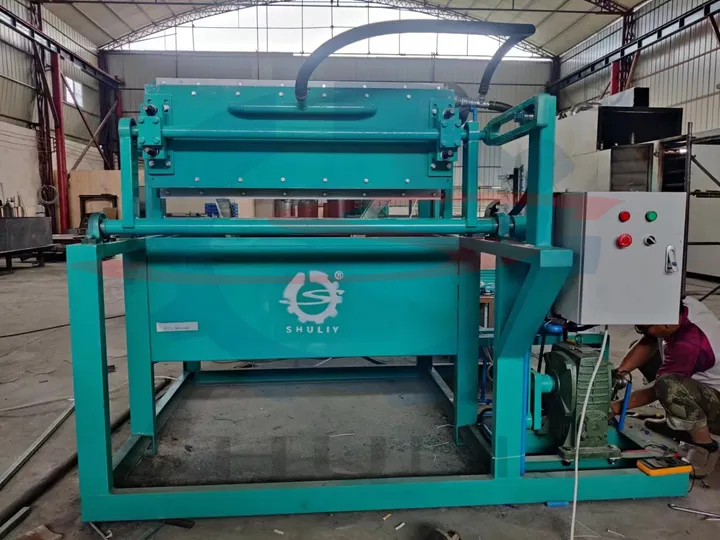

Type 1: SL-3*1 Small Egg Tray Machine
The SL-3×1 small egg tray forming machine consists of one transfer side and three forming sides. The transfer side is responsible for conveying wet pulp, while the three forming sides mold wet paper trays simultaneously. Each production cycle can produce 3 egg trays, with an output capacity of up to 1,000 pieces per hour.
Technical Parameters of SL-3*1 Small Egg Tray Making Machine
| Item | Parameter |
|---|---|
| Model | SL-3*1 |
| Output | 1,000 trays/hour |
| Power | 38 kW |
| Voltage | 380V / 50Hz |
| Weight | 2,500 kg |
| Main Machine Size | 2,600 × 2,200 × 1,900 mm |
| Paper Consumption | 80 kg/h |
| Water Consumption | 160 kg/h |
| Drying Method | Air drying / Drying box |
Type 2: SL-4*1 Small Egg Tray Machine
The SL-4×1 small egg tray making machine consists of one transfer side and four forming sides. The transfer side conveys wet pulp, while the four forming sides simultaneously mold the pulp into egg trays. Each production cycle can produce 4 egg trays.
Compared with the SL-3×1 model, this machine provides higher production capacity while maintaining a simple structure and easy operation. It is suitable for small and medium-scale egg tray production lines. The output capacity can reach 1,500 pieces per hour.
Technical Parameters of SL-4*1 Small Egg Tray Machines
| Item | Parameter |
|---|---|
| Model | SL-4*1 |
| Output | 1,500 trays/hour |
| Power | 38 kW |
| Voltage | 380V / 50Hz |
| Weight | 3,000 kg |
| Main Machine Size | 2,800 × 2,200 × 1,900 mm |
| Paper Consumption | 120 kg/h |
| Water Consumption | 240 kg/h |
| Drying Method | Air drying / Drying room |
Key Differences Between the Two Machines
| Comparison Item | SL-3*1 | SL-4*1 |
|---|---|---|
| Mold Positions | 3 | 4 |
| Output | 1,000 trays/hour | 1,500 trays/hour |
| Total Power | 38 kW | 38 kW |
| Main Machine Weight | 2,500 kg | 3,000 kg (more stable) |
| Paper Consumption | 80 kg/hour | 120 kg/hour |
| Water Consumption | 160 kg/hour | 240 kg/hour |
| Drying Configuration | Air drying / Drying box | Air drying / Drying room (for higher output) |
| Suitable For | Small farms / Startups | Small to medium egg tray factories / Capacity expansion |
Advantages of Small Egg Tray Machines
Simple and Stable Structure
The machines use single-side 3×1 or 4×1 forming systems, which are compact and have a low failure rate.
- SL-3*1: 3 mold positions
- SL-4*1: 4 mold positions
The single-side system reduces rotating and transmission parts, ensuring stable operation and easy maintenance.
High Efficiency and Low Energy Consumption
Both models have a power of 38 kW, producing 1,000–1,500 trays per hour. The energy-to-output ratio is reasonable, making them cost-effective among similar machines.
High Pulp Utilization
Vacuum forming ensures even pulp distribution and high absorption efficiency.
- Paper consumption: 80–120 kg/h
- Water consumption: 160–240 kg/h (most can be recycled)
Durable Materials
The frame is made of thick Q235 carbon steel, weighing 2,500–3,000 kg, ensuring stability and precise forming.
Molds can be aluminum or copper, corrosion-resistant, heat-resistant, long-lasting, and form neat trays.
Flexible Drying Options
Drying can be adapted to production and climate:
- Air drying (low cost, suitable for sunny areas)
- Drying box (for SL-3*1)
- Drying room (recommended for SL-4*1)
Flexible configuration meets various small-scale production needs.
Stable and Reliable Output
Precision vacuum forming ensures consistent tray quantity and quality per cycle.
- SL-3*1: 1,000 trays/hour
- SL-4*1: 1,500 trays/hour
Wet trays are uniform and consistent; dried trays are flat, strong, and reduce rework, improving overall production efficiency.
Small Egg Tray Production Line
The small egg tray production line mainly consists of the following parts:
Pulping System
Waste paper such as newspapers, corrugated paper, and kraft paper is mixed with water, then stirred and crushed to form a uniform pulp mixture.
The pulp concentration can be adjusted according to production requirements, and a small amount of waterproofing agent can be added to improve moisture resistance. The maximum recommended water-to-paper ratio is 5:1, while the optimal ratio is generally around 10:1. A higher pulp concentration means more waste paper can be processed with less water; however, if the concentration is too high or too low, the final egg trays may not form properly.
During egg tray production, not only the pulp concentration needs to be properly controlled, but the pulp must also be thoroughly mixed and refined. In general, the pulping process takes approximately 20–40 minutes to achieve a uniform pulp consistency suitable for molding.
Forming System
Single-sided molds (3*1 or 4*1) with vacuum suction are used to evenly form wet trays.
Each cycle can form multiple trays at once, improving production efficiency.
Drying System
This egg tray drying room can dry approximately 1,000 egg trays per batch at 180–200°C, with a drying time of 30–40 minutes.
After molding, the wet egg trays are placed on galvanized trays, loaded onto drying racks, and pushed into the drying room for hot-air drying. The room can hold 10–12 carts, with each cart carrying about 90–100 egg trays. An additional 10 carts can be equipped for continuous production.
Compared with natural sun drying, this method allows continuous production regardless of weather conditions, saves space, and improves drying stability. However, it requires more manual labor for tray loading, cart movement, and unloading.
Hot Pressing (Optional)
To achieve a smoother and more attractive surface, a small egg tray hot pressing machine can be used for further processing. This egg tray hot press molding machine uses electric heating to heat the pressing mold up to 200°C. Then, with a downward pressure of 20 tons from the hydraulic cylinder, it compresses the egg trays, making both sides of the trays smooth and evenly finished.
Packaging and Stacking
The egg tray packing machine provided by Shuliy uses a pneumatic cylinder to compress 70–120 egg trays into a compact stack. This process ensures that the stacked egg trays have a uniform length, making them easier to package, load, and transport.
The complete production process is shown in the diagram.
Drying Methods Compatible with Small Egg Tray Making Machines
Small egg tray making machines usually use two main drying methods: natural sun drying and drying room drying. The suitable method depends on production capacity, local climate conditions, and investment budget.
Natural Sun Drying
Natural drying is suitable for small-scale production of 1,000–2,000 egg trays per day, especially in areas with warm and dry climates. The drying time mainly depends on the weather conditions: at 30–35°C, egg trays usually need about 2 hours to dry; at around 25°C, drying may take about 5 hours; while in cold weather of 5–10°C, it may take up to 48 hours.
After molding, wet egg trays are placed on bamboo or galvanized trays, then loaded onto drying racks and moved to an open area. The trays are dried naturally through sunlight and airflow. Generally, 100–200 drying racks are required. Each rack can hold 24–30 mesh trays, and each mesh tray can hold 3–4 egg trays.
The main advantage of natural drying is that it requires no additional energy consumption, helping reduce production costs. However, it requires more labor, larger drying space, and depends heavily on weather conditions.
Drying Room / Cart Drying
For businesses requiring more stable production, a drying room or cart drying system is a better choice. This method can dry approximately 1,000 egg trays per batch at 180–200°C, with a drying time of about 30–40 minutes.
After molding, the wet egg trays are placed on galvanized trays, loaded onto drying racks, and pushed into the drying room for hot-air drying. The drying room can accommodate 10–12 carts, with each cart holding approximately 90–100 egg trays. An additional 10 carts can be prepared for continuous circulation.
Compared with natural drying, this method allows stable production regardless of wind or rain, requires less space, and improves drying efficiency. However, it requires more labor for tray handling, cart movement, and loading/unloading operations.
Services Provided by Shuliy
Shuliy offers one-stop services to ensure efficient and safe operation of equipment:
- Solution Design: Customize production line plans based on output and space for stable and efficient operation.
- Installation & Commissioning: Provide on-site or remote guidance to quickly put equipment into use.
- Operation Training: Train operators in pulping, forming, drying, and maintenance processes.
- Technical Support & Spare Parts: Supply spare parts long-term and offer phone or remote technical support.
- After-Sales Maintenance: Provide regular inspections and maintenance suggestions to extend equipment life.
- Customization & Upgrades: Offer mold customization, equipment upgrades, and production line expansion services.
1500pcs/h Egg Tray Machine Shipped to Brazil
In 2026, a poultry farm in Paraná, Brazil, purchased Shuliy’s SL-1×4 egg tray making machine to produce eco-friendly paper egg trays in-house. Facing rising plastic packaging costs and increasing demand for sustainable solutions, the customer chose this 1500 pcs/h egg tray machine to improve packaging efficiency and reduce operating costs. The complete solution included the egg tray molding machine, pulping equipment, accessories, installation guidance, and technical support. After installation, the customer successfully upgraded from manual packaging to semi-automatic production, achieving higher productivity while reducing packaging expenses with recyclable pulp-based trays.
FAQ About Shuliy Small Egg Tray Machine
What is the standard size and egg diameter of the egg trays produced by this machine?
The standard 30-cell egg tray produced by this machine is approximately 29.5 × 29.5 cm, with a tray depth of about 46 mm. It is suitable for common egg sizes with diameters ranging from 44 mm to 50 mm. For larger eggs (up to around 52 mm), customized tray molds can be provided.
How much weight can one molded egg tray hold?
Although a standard egg tray usually weighs about 65–75 g, its molded pulp structure provides excellent strength. Under normal conditions, a finished egg tray can withstand the weight of an adult person without breaking when pressure is evenly distributed.
How much moisture does a finished wet egg tray contain after molding?
After the molding process, the moisture content of a wet egg tray is usually around 60–70%. For example, an 80 g egg tray contains approximately 160 g of water, making the total wet weight about 240 g before drying.
What is the production cost of one recycled paper egg tray?
The production cost depends on local waste paper prices, electricity costs, labor, and drying methods. Taking waste paper as an example, if 1 ton of waste paper costs $200 and produces around 12,500 pieces of 80 g egg trays, the raw material cost is approximately $0.016 per tray. Other costs should be calculated according to local conditions.

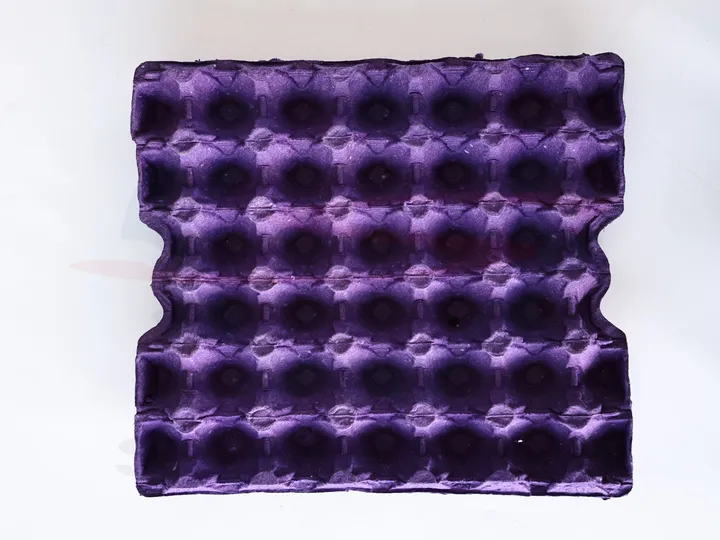

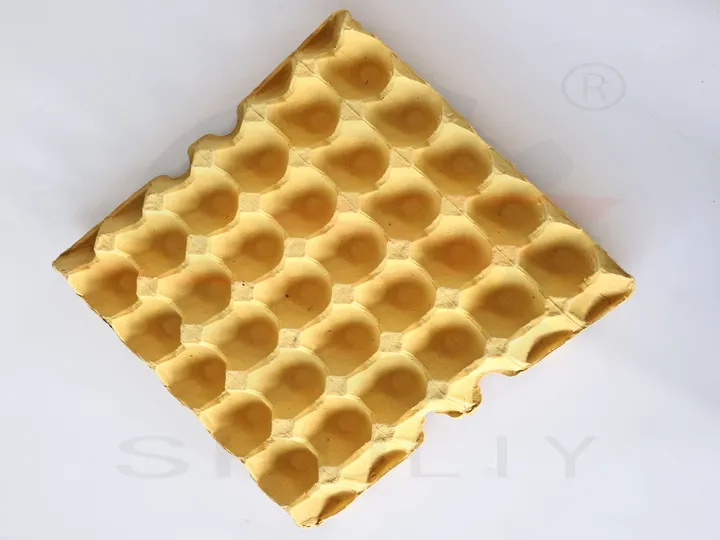

Can this small egg tray machine produce trays in different colors?
Yes. Different colors can be achieved by adding suitable pigments into the pulp mixing tank before molding. Common colors include blue, green, yellow, and red, which are often used for customized packaging or brand identification.
How can I make the egg trays stronger and harder?
To increase the strength and hardness of molded pulp egg trays, additives such as lime powder or agricultural fibers like bagasse (sugarcane residue) can be added to the pulp. Adjusting pulp concentration and drying conditions can also improve tray strength.
How long is the service life of the egg tray machine mold?
Under normal operating conditions, the molding mold can usually be used for about 2 years or longer. The actual lifespan depends on production frequency, maintenance, and whether abrasive materials enter the pulp system.
Which parts of the egg tray machine are made of stainless steel?
The parts include the mold chamber, pulp tank, machine cover, and mold wire mesh.
Can the egg tray machine be used for products other than egg trays?
Yes. By changing molds, the same pulp molding technology can produce other packaging products, such as fruit trays, bottle trays, coffee cup holders, and industrial protective packaging.
Does the egg tray production process require special environmental conditions?
The machine can operate in normal factory environments. However, a well-ventilated workshop with enough drying space is recommended because molded pulp products contain high moisture after forming and require effective drying before packaging.
