Pulp Molding Machine
Pulp Bedpan Making Machine
Shuliy Pulp Bedpan Making Machine has a production capacity of 1,000–7,000 pcs/h. The trays produced are high-quality, capable of bearing 1–1.5 kg, and can hold liquid for 3–6 hours without collapsing.
Pulp Molding Machine

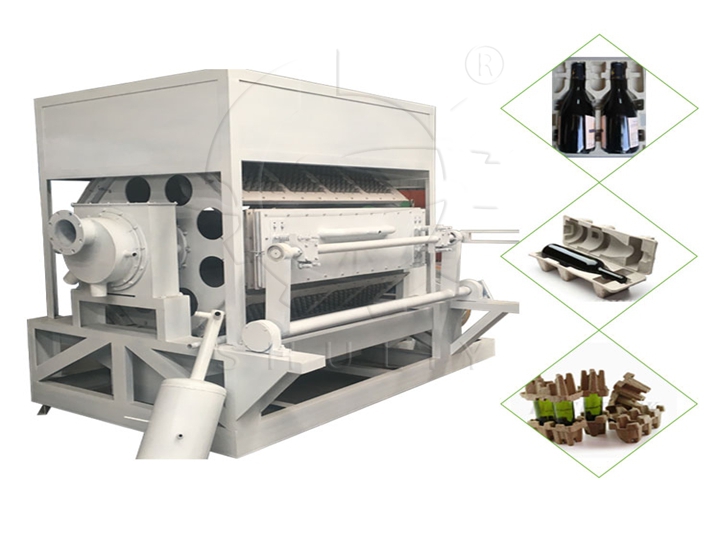

A pulp wine tray making machine is a fully automatic industrial device designed to produce molded pulp wine trays. It can achieve high output, with a maximum capacity of up to 6000PCs/h.
A pulp wine tray making machine is industrial equipment designed to produce molded pulp wine trays. It uses processes like vacuum forming, pressing, and drying to shape the pulp into various tray designs.

Pulp wine trays are eco-friendly packaging materials made from waste paper, cartons, and similar materials using pulp molding technology. Compared to traditional foam packaging, pulp wine trays are more environmentally friendly, biodegradable, and offer good cushioning, making them a better fit for modern green packaging needs.
This Wine Packaging Tray Making machine plays an important role in modern green packaging production lines, and is especially suitable for making trays for glass bottles such as wine, champagne, and liquor.
Shuliy offers 7 models of pulp molding machines with a capacity of 1,000 to 7,000 pcs/h, exporting over 50 units per year.

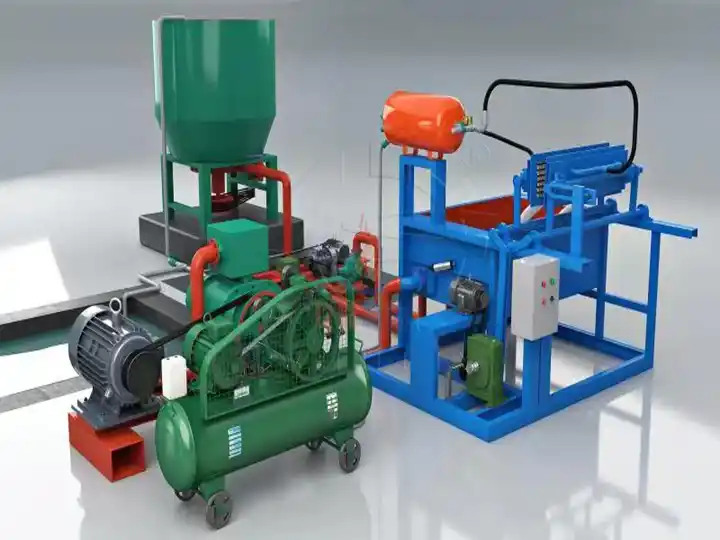

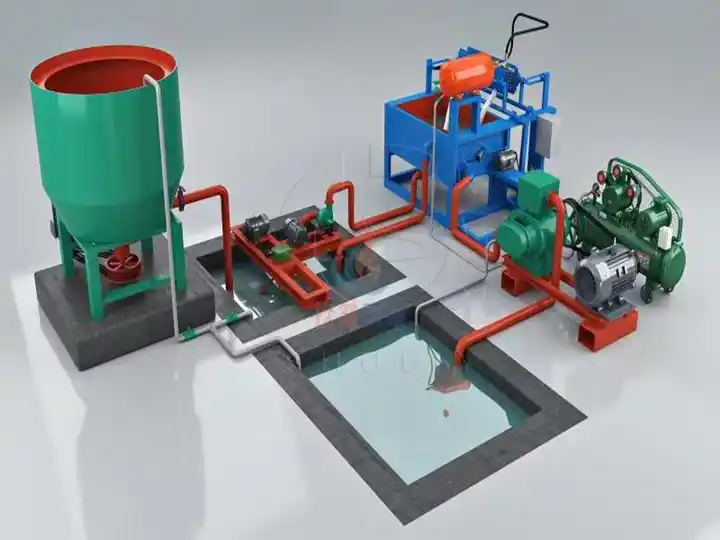

The pulp wine tray making machine mainly includes the pulping system, forming system, drying system, and packing system.



| Model | Capacity | Power | Voltage | Weight | Pulp Usage | Water Usage | Size(mm) |
| SL-1000-3X1 | 1000pcs/h | 38kw | 380V,50HZ | 2500kg | 80kg/h | 160kg/h | 2600*2200*1900 |
| SL-1500-4X1 | 1500pcs/h | 38kw | 380V,50HZ | 3000kg | 120kg/h | 240kg/h | 2800*2200*1900 |
| SL-2500-3X4 | 2500pcs/h | 55kw | 380V,50HZ | 4000kg | 200kg/h | 400kg/h | 2900*1800*1800 |
| SL-3000-4X4 | 3000pcs/h | 60kw | 380V,50HZ | 4800kg | 240kg/h | 480kg/h | 3250*1800*1800 |
| SL-4000-4X8 | 4000pcs/h | 95kw | 380V,50HZ | 7000kg | 320kg/h | 640kg/h | 3250*2300*2500 |
| SL-5000-5X8 | 5000pcs/h | 95kw | 380V,50HZ | 8000kg | 400kg/h | 800kg/h | 3700*2300*2500 |
| SL-7000-6X8 | 7000pcs/h | 120kw | 380V,50HZ | 10000kg | 480kg/h | 960kg/h | 3200*2300*2500 |
The above is our standard model for reference. If you have more specific requirements, we can also customize the machine according to your needs.


Similar to the egg tray making machine, the pulp wine tray forming machine adopts pulp forming technology. It follows a pulp forming process where the pulp is injected into a mold. Then, the tray is formed by vacuum suction, heat dried, and formed into a tray of special strength and design.
The main working steps also are: pulping → forming → drying → packaging.



| Category | Type |
| By Bottle Volume | 187ml, 375ml, 500ml, 700ml, 750ml, 1L, 1.5L, 3L / 5L |
| By Bottle Quantity | Single-bottle, Two-bottle, Four-bottle, Six-bottle, Twelve-bottle |
| By Structure | One-piece type, Top and bottom separate type, Insert type |
| By Molding Process | Dry press molding, Wet press molding |
| By Usage | Transport protection type, Gift box display type, Export type |
| Item | Pulp Wine Tray | Plastic Foam Tray | Corrugated Paper Insert |
| Environmental | Biodegradable, eco-friendly | Non-biodegradable | Recyclable |
| Protection | Strong | Very strong | Medium |
| Cost | Medium | Higher | Lower |
| Customization | High | Medium | Medium |
| Appearance | Good (better with wet pressing) | Poor | Medium |

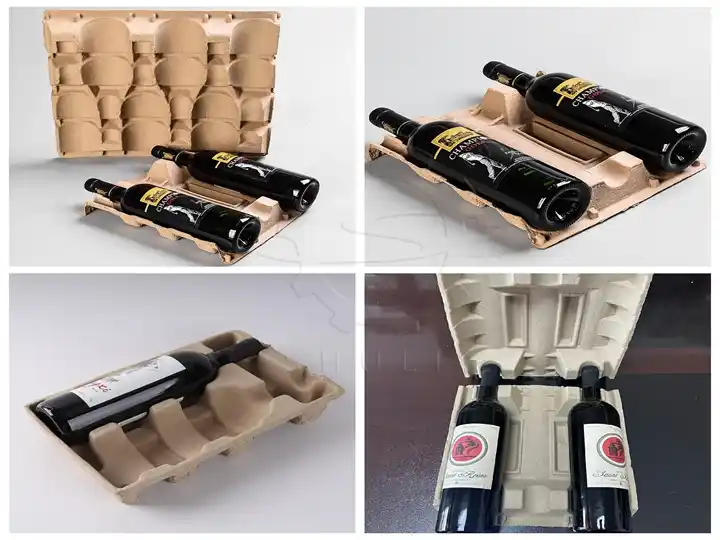

The pulp wine trays we often produce are shown below. However, we have many other mold options available. If you’re interested, feel free to contact us anytime!

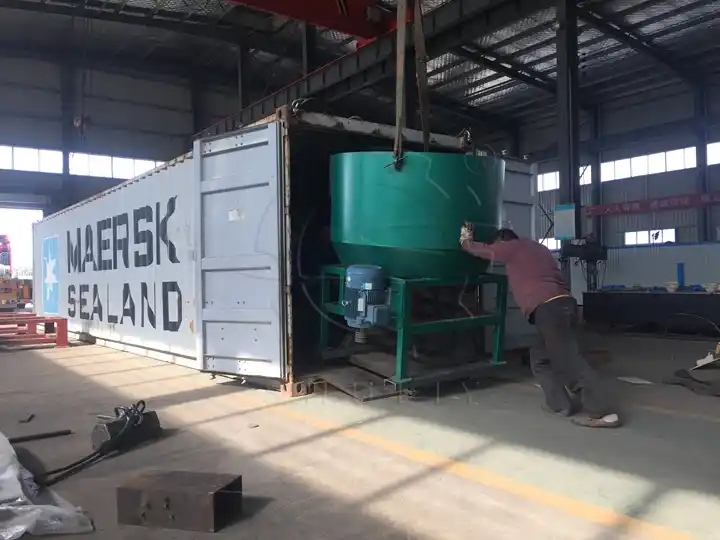

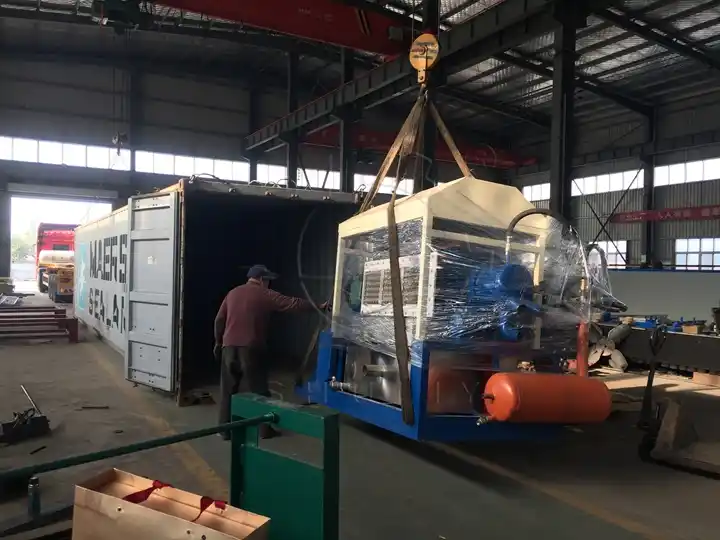

Here are some of our shipping photos. You can take a look at our packaging.
