8면 계란 트레이 기계
| 상표 | 슈리 기계 |
| 모델 | SL-4000-4X8; SL-5000-5X8; SL-7000-6X8 |
| 용량 | 4000-7000pcs/h |
| 전력 | 95kw; 120kw |
| 전압 | 380V,50HZ |
| Size | Reference Technical Parameter Table |
| 보증 | 12개월 |
이제 기술적인 세부 사항에 대해 프로젝트 관리자에게 문의하실 수 있습니다.
그만큼 8면 계란 트레이 기계, also known as a large-scale egg tray forming machine, is equipped with an 8-sided rotary drum. It enables high-speed, continuous production, making it especially suitable for factories with medium to large-scale output requirements.
SL-4000-4*8 can produce about 4000 eggshells per hour. Egg plate molds can be customized according to the buyer’s requirements. This equipment can be continuously produced and ensures production capacity. In addition, because the whole production process is recycled waste paper, no pollution sources, so it is called green environmental protection machinery.
모델 SL-5000-5*8 egg tray machine can produce about 5000pcs egg trays per hour. It is 45 angle and an eight-plate rotary tray machine. Eight plates form a board, and all systems can be connected. This transfer arm makes a 90-degree reciprocating motion. The working efficiency is very high.
그만큼 SL-7000-6*8 is our company’s highest-capacity egg tray forming machine, with an output of up to 7,000 pieces per hour. It features an 8-sided rotary drum with 6 egg tray molds on each side, making it ideal for efficient, large-scale production in big factories.
What are the advantages of the 8-sided egg tray machine?
- Made with thickened carbon steel for durability and strong load capacity
- Aluminum alloy molds (optional stainless steel), lightweight and easy to dry and replace
- Non-stick, high-temperature Teflon coating available
- High-strength steel transmission system with wear-resistant bearings
- Stainless steel hydraulic pipes and copper valves, corrosion-resistant
- Waterproof and dustproof stainless steel control cabinet
- 8 side rotary design enables continuous operation without frequent stops
- Compatible with automatic drying and stacking systems
- Industrial-grade materials ensure over 10 years of continuous use
Structure & Production process of the 8-side rotary drum egg tray machine
The 8-sided tray making machine mainly consists of the pulping system, forming system, drying system, and packing system.
8면 계란 트레이 기계의 매개 변수
| 모델 | SL-4000-4X8 | SL-5000-5X8 | SL-7000-6X8 |
| 용량 | 4000개/시간 | 5000개/시간 | 7000pcs/h |
| 전력 | 95kw | 95kw | 120kw |
| 전압 | 380V,50HZ | 380V,50HZ | 380V,50HZ |
| 무게 | 7000kg | 8000kg | 10000kg |
| Pulp Usage | 320kg/h | 400kg/h | 480kg/h |
| Water Usage | 640kg/h | 800kg/h | 960kg/h |
| 크기(mm) | 3250*2300*2500 | 3700*2300*2500 | 3200*2300*2500 |

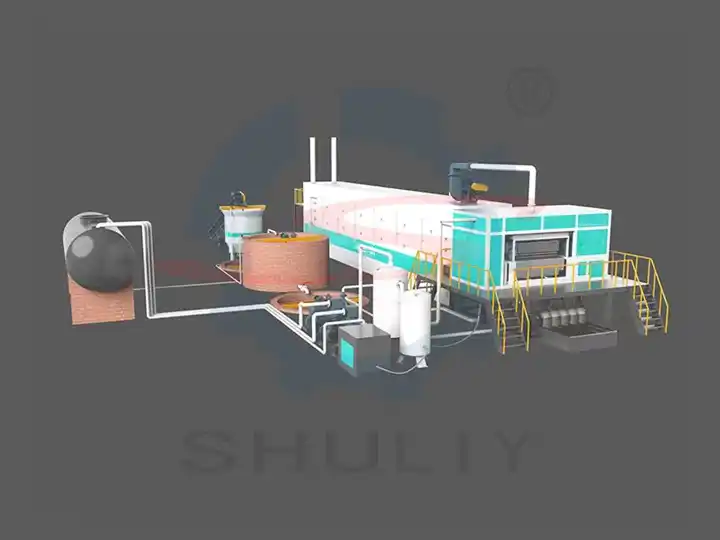

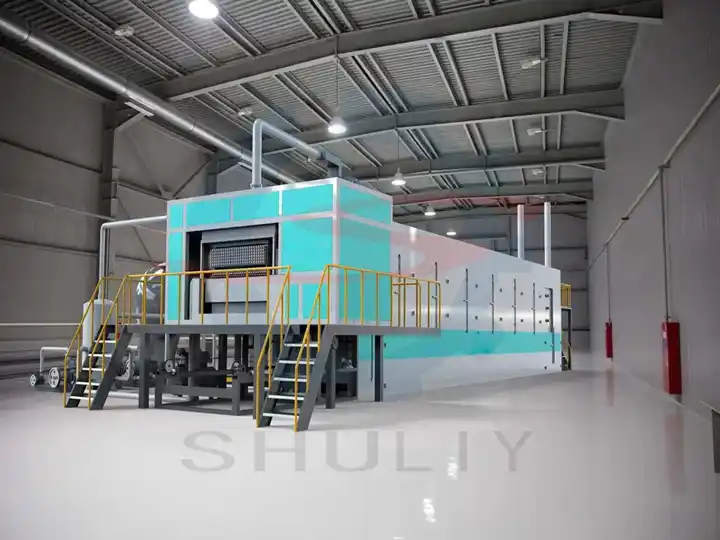

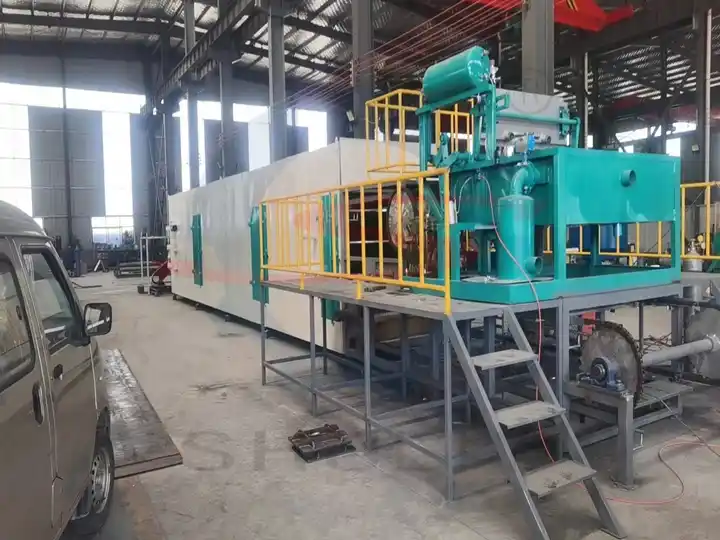

8 side 계란 트레이 생산 라인
직접 제조업체로서 우리는 펄핑 기계, 공기 압축기, 건조기 및 기타 장비를 제공할 수 있습니다. 또한 노동 비용을 줄이는 데 도움이 되는 합리적인 토지 배치 계획을 제공합니다.
Sun Drying
| 목 | Area |
| Machine footprint | 30–50 m² |
| Drying yard area | 1000 m² |
Civil Construction Dryers
| 모델 | Length (m) | Width (m) | Height (m) |
| SL-4×8 | ＞65 | ＞15 | ＞3 |
| SL-5×8 | ＞65 | ＞15 | ＞3 |
| SL-6×8 | = 80 | ＞15 | ＞3 |
| SL-8×8 | = 80 | ＞15 | ＞3 |
Multi-layer Dryers
| 모델 | Length (m) | Width (m) | Height (m) |
| SL-4×8 | 27.5 | 6 | 3.6 |
| SL-5×8 | 27.5 | 6 | 3.6 |
| SL-6×8 | 33.5 | 6 | 3.6 |
계란 트레이를 만드는 방법?
원료는 주로 짚펄프, 슬러리, 대나무 펄프, 목재 펄프, 폐지 판지, 폐지 상자 종이, 폐지 백지, 제지 공장 꼬리 펄프 폐기물 등입니다. 원료는 출처가 다양하고 수집이 쉽습니다. 계란 트레이 기계는 주요 기계입니다. 계란 트레이 생산 라인.
Feeding the pulp in the pulp pool into the molding machine. The pulp is absorbed by the vacuum system, and the pulp is molded by the mold on the equipment. The water is absorbing and transporting back into the pulp pool through the vacuum pump. The water can be recycled.
After the mold adsorbs the water slurry, the transfer mold is discharged through the air compressor. The finished product is blown from the forming mold onto the transfer mold, and then it is sent out by the transfer mold.
Egg tray cost analysis table
| Cost Item | Description | Unit Cost per Tray (RMB) |
| Raw Material | 1 ton of waste paper can produce 12,000–15,000 trays (based on tray weight). Based on 80g per tray: 1,000,000g ÷ 80g = 12,500 trays Waste paper price: ¥1500/ton → 1500 ÷ 12,500 = ¥0.12 per tray | ¥0.12 |
| 노동 | Sun drying: 6 workers; drying by machine: 4 workers. In China, Labor is often calculated by piecework: approx. ¥0.02 per tray. | ¥0.02 |
| 전기 | Varies with capacity and power consumption. Higher output means lower cost per tray. | ¥0.02 |
| Drying Fuel | Coal (5000 kcal/kg) Wood (4000 kcal/kg) Natural Gas (8900 kcal/m³) Diesel (11,900 kcal/liter) | ¥0.03/pc ¥0.03/pc ¥0.06/pc ¥0.08/pc |
| Pigment (optional) | ¥12/kg pigment; 1 kg can produce approx. 3000–4000 trays | Approx. ¥0.003–0.004 |
Currency Conversion: $1(USD)=¥7.2(RMB)
계란 트레이 장비가 시장에서 왜 그렇게 인기가 있습니까?
Environmental friend: With the development of society, more and more people are paying attention to environmental protection issues. The environment is what people depend on for survival. So we have to protect the environment through various channels. Recycling of waste paper is a way to protect the environment. No pollution will occur during the production process.
기능: 계란 트레이의 주요 기능은 충격 흡수입니다. 깨지기 쉬운 품목 등의 품목은 분리하여 운송이나 보관 중 품목의 파손률을 줄입니다.
Price: The egg tray machine has several models to choose from. If you want to start a business from small, this is a good choice. The investment is not high, and you can take back the investment when the machine starts to produce. Egg tray machine for sale at a reasonable price from Zhengzhou Shuliy Machinery.
