4000-7000个/小时 鸡蛋纸箱机

Shuliy offers large egg carton machines in three models: SL-4*8, SL-5*8，和 SL-6*8. Their capacity ranges from 4,000 to 7,000 pcs/hr. Customers can choose based on actual production needs and factory conditions. For machines above 10,000 pcs/hr, we also offer custom solutions.

This 4,000–7,000 pcs/hr large egg carton machine is designed for medium to large egg carton factories. It is a fully automatic pulp molding machine that combines high efficiency, stable operation, and large-scale production. The series uses an 8-face rotary molding structure to produce standard pulp egg cartons continuously and reliably. It is widely used in egg packaging, logistics, and export packaging.

Shuliy is committed to providing these egg carton machines worldwide. Whether you are new to pulp egg carton production or looking to upgrade your equipment, we can offer tailored solutions, help design your factory layout, and plan your production process.

Is a Large Egg Carton Machine the Same as an Egg Tray Machine?

The terms egg carton machine and egg tray machine are sometimes used interchangeably in the pulp molding industry, but the final product depends on the mold design.

A large pulp molding machine can be configured for different egg packaging formats, including traditional egg trays and carton-style packaging.

The main difference is the mold structure and final product design, rather than simply the machine name.

Therefore, when requesting a quotation, buyers should provide the required egg carton or egg tray type instead of selecting a machine based only on the product name.

This allows the manufacturer to confirm the suitable mold, forming capacity, and supporting equipment.

大型蛋盒机型号

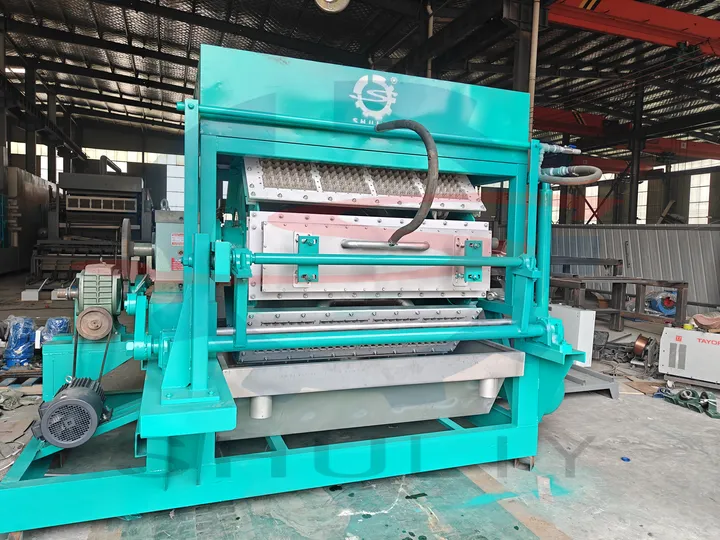

类型1：SL-4*8

这 SL-4*8 has 8 rotary faces and 1 conveyor face. Each rotary face has 4 forming molds. All four molds shape wet pulp trays at the same time, producing 32 egg cartons per full rotation.

技术规格

项目	规格
型号	SL-4*8
容量	4000–5000件/小时
功率	95千瓦
电压	380V，50Hz
重量	7000公斤
尺寸（模具机）	3250 × 2300 × 2500毫米
纸耗	320公斤/小时
水耗	640公斤/小时
干燥方法	砖窑干燥或多层干燥机

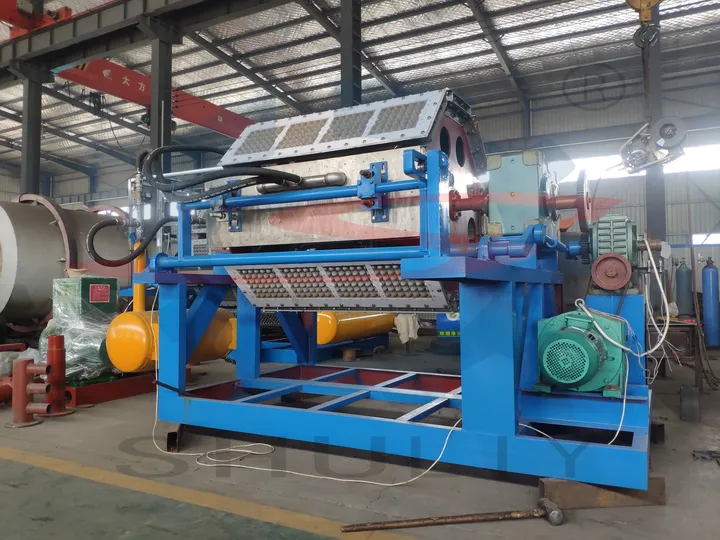

类型2：SL-5*8

这 SL-5*8 has 8 rotary faces and 1 conveyor face. Each rotary face has 5 forming molds. All five molds shape wet pulp trays at the same time, producing 40 egg cartons per full rotation.

技术规格

项目	规格
型号	SL-5*8
容量	5000–6000件/小时
功率	95千瓦
电压	380V，50Hz
重量	8000公斤
尺寸（模具机）	3700 × 2300 × 2500毫米
纸耗	400 kg/h
水耗	800公斤/小时
干燥方法	砖窑干燥或多层干燥机

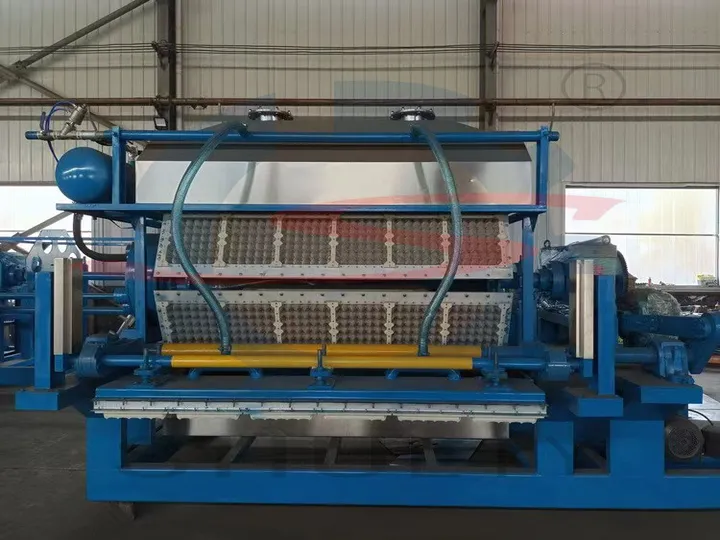

类型3：SL-6*8

这 SL-6*8 has 8 rotary faces and 1 conveyor face. Each rotary face has 6 forming molds. All six molds shape wet pulp trays at the same time, producing 48 egg cartons per full rotation.

技术规格

项目	规格
型号	SL-6*8
容量	6000–7000件/小时
功率	120千瓦
电压	380V，50Hz
重量	10,000公斤
尺寸（模具机）	3200 × 2300 × 2500毫米
纸耗	480 kg/h
水耗	960公斤/小时
干燥方法	砖窑干燥或多层干燥机

三款型号对比

型号	产能（pcs/h）	功率（kW）	浆料消耗（kg/h）	用水量（kg/h）
SL-4×8	4000–5000	95	320	640
SL-5×8	5,000–6,000	95	400	800
SL-6×8	6,000–7,000	120	480	960

Which Large Egg Carton Machine Should You Choose?

The right large egg carton machine depends on your target production capacity, available factory space, raw material supply, and expected working hours. Shuliy offers three 8-side rotary models with capacities from 4,000 to 7,000 pcs/h.

这 SL-4×8 is suitable for businesses targeting 4,000–5,000 egg cartons per hour. The SL-5×8 increases production to 5,000–6,000 pcs/h, while the SL-6×8 is designed for larger factories requiring 6,000–7,000 pcs/h.

Target Capacity	推荐型号	Main Application
4,000–5,000 pcs/h	SL-4×8	Medium-scale commercial production
5,000–6,000 pcs/h	SL-5×8	Growing egg carton factories
6,000–7,000 pcs/h	SL-6×8	大规模商业生产

When selecting a model, buyers should also consider the capacity of the pulping system and drying system. The complete production line should be configured to match the forming machine rather than selecting the forming capacity alone.

主要优势

大型蛋盒制造机的亮点

• 机器采用厚碳钢制造，具有高强度、稳定性、优良的承载能力和长久的可靠性。
• 标准铝模轻巧、导热快、干燥效率高。不锈钢或塑料模具也可根据不同生产需求定制。
• 模具表面可采用高温防粘特氟龙涂层，减少粘连，改善脱模，确保产品质量稳定。
• 高强度钢传动系统配备耐磨轴承，确保运行平稳，维护简便，适合长时间连续生产。
• 不锈钢液压管道和铜阀门提供优异的耐腐蚀性能，确保液压系统长久稳定运行。
• 防水防尘不锈钢控制柜，确保在恶劣工业环境中的电气安全和可靠性。
• 八面旋转成型设计实现连续作业，无需频繁停机，大大提高生产效率。
• 可无缝集成自动干燥和堆叠系统，形成全自动蛋盒生产线。
• 采用工业级耐用材料，支持超过10年的连续稳定使用，维护得当。

如何制作蛋盒？

Large egg carton machines use waste paper, cardboard, old books and newspapers, paper mill pulp, bamboo pulp, or wood pulp as raw materials. The pulp is processed into a uniform slurry. The slurry is vacuum-formed on molds to quickly shape wet egg carton blanks. The wet blanks are then automatically demolded and sent to a drying line or air-drying area, producing strong, uniform egg cartons. The machine runs continuously and stably, suitable for 24-hour uninterrupted production.

What Products Can a Large Egg Carton Machine Produce?

With different molds, a large pulp molding machine can be configured to produce different molded-pulp packaging products. The exact product range depends on the forming machine and mold design.

Possible applications include:

• 蛋托
• Egg cartons
• Fruit trays
• Apple trays
• Seedling trays
• Cup carriers
• Other molded-pulp packaging products

For egg packaging, different mold configurations can also be designed for different egg quantities and carton shapes.

If you plan to produce products other than standard egg trays, provide the product dimensions, number of cavities, and product drawings or samples. The mold and machine configuration can then be evaluated before ordering.

What Equipment Is Needed for a Complete Large Egg Carton Production Line?

A large egg carton production line normally includes four main sections: pulp preparation, egg carton forming, drying, and packaging. For a 4,000–7,000 pcs/h production line, each section should be matched with the capacity of the selected forming machine.

Production Section	Main Equipment	功能
Pulp Preparation	Hydraulic pulper, pulp refiner, agitator	Turn waste paper into uniform pulp
Pulp Supply	Pulp pump, storage tank, screening equipment	Store, filter, and supply pulp
成型	Large egg carton machine	Vacuum-form wet egg cartons
干燥	Brick kiln dryer or multi-layer dryer	Remove moisture from wet cartons
Stacking	Automatic stacking system	Arrange finished cartons
包装	包装机	Compress and package finished products

A complete line can be configured according to the required capacity, available factory space, local energy costs, and level of automation.

For customers who already have some equipment, the production line can also be configured around the existing machinery to avoid unnecessary investment.

Request a complete egg carton production line proposal based on your target capacity and factory conditions.

Process Flow

Which Drying Method Is Suitable for a Large Egg Carton Production Line?

Drying is an important part of a large egg carton production line because the forming machine continuously produces wet cartons. The drying system must have enough capacity to process the output from the forming machine.

Shuliy provides different drying options, including sun drying, brick kiln drying, and multi-layer drying.

干燥方法	Suitable Situation	Main Consideration
太阳干燥	Low investment and suitable climate	Requires large drying area and more labor
Brick Kiln Drying	Commercial production with available space	Suitable for continuous production
Multi-Layer Dryer	Large-scale and automated production	Higher investment but saves floor space

For 4,000–7,000 pcs/h production, a mechanical drying system is generally more suitable when stable year-round production and higher automation are required. The final dryer configuration should be selected according to local fuel availability, climate, factory space, and investment budget.

For reference, the 8-side production line information on this site gives multi-layer dryer dimensions of about 27.5 × 6 × 3.6 m for SL-4×8 and SL-5×8, and about 33.5 × 6 × 3.6 m for SL-6×8. Actual layouts can be adjusted according to the factory and equipment configuration.

How Much Factory Space Does a Large Egg Carton Production Line Need?

The required factory space depends on the forming machine, drying method, raw material storage, and finished-product storage. The forming machine itself occupies much less space than the complete production line, so buyers should plan the factory based on the entire process.

The factory normally needs space for:

• Waste paper and cardboard storage
• 纸浆准备
• Egg carton forming
• 干燥
• Finished-product stacking
• 包装
• Finished-product storage
• Equipment maintenance and operation

For example, a multi-layer dryer requires considerably less floor area than a long brick drying line, while sun drying requires a much larger open drying area.

Before purchasing a large egg carton machine, buyers can provide the factory length, width, and height. Shuliy can use this information to recommend an equipment layout and suitable drying solution.

Send us your factory dimensions to get a proposed egg carton production line layout.

How Much Does a Large Egg Carton Machine Cost?

The price of a large egg carton machine varies according to the production capacity, machine model, mold configuration, automation level, and supporting equipment.

For the 4,000–7,000 pcs/h production range, the main factors affecting the total investment include:

Cost Factor	What Affects the Cost?
Forming Machine	Model and production capacity
霉菌	Product type, size, and mold material
制浆系统	Raw material and required pulp capacity
干燥系统	Dryer type, capacity, and fuel
Packaging System	Manual or automatic packaging
电气系统	Voltage and local electrical requirements
Factory Layout	Workshop size and equipment arrangement
Shipping	Destination and transportation method

The price of the forming machine should therefore not be considered separately from the rest of the production line. A buyer who needs a complete commercial production line should calculate the cost of the forming, pulping, drying, stacking, and packaging systems together.

For an accurate quotation, provide your target capacity, egg carton specification, raw material, voltage, and destination.

Get a quotation for a 4,000–7,000 pcs/h large egg carton production line.

使用大型蛋盒机的成本有哪些？

The production cost of egg cartons depends mainly on raw material, electricity, drying fuel, labor, water, maintenance, and packaging.

Among these costs, waste paper and drying energy can have a significant impact on the final cost per carton. Local prices should therefore be used when calculating the actual production cost for a specific project.

A basic calculation is:

Production cost per carton = Total production cost ÷ Actual number of cartons produced

The main cost items include:

成本项目	Main Influencing Factor
废纸	Local waste paper price and carton weight
电力	Machine power and operating hours
干燥燃料	Fuel type, moisture content, and dryer efficiency
劳动力	Production automation and local wages
水	Pulp preparation and water recycling
Maintenance	Wear parts and operating conditions
包装	Packing method and packaging materials

The cost examples shown below are reference figures rather than fixed production costs. Actual costs vary by country, energy prices, raw material prices, labor rates, and operating conditions.

成本项目	描述	每托盘单位成本（人民币）
原材料	1吨废纸可以生产 12,000–15,000个托盘 （基于托盘重量）。 基于每个托盘80克：1,000,000克 ÷ 80克 = 12,500个托盘 废纸价格：¥1500/吨 → 1500 ÷ 12,500 = ¥0.12 每个托盘	¥0.12
劳动力	阳光干燥：6名工人； 机器干燥：4名工人。 在中国， 劳动通常按件计酬： 每托盘约 ¥0.02。	¥0.02
电力	根据容量和功耗而有所不同。 更高的产出意味着每托盘的成本更低。	¥0.02
干燥燃料	煤（5000 千卡/千克） 木材（4000 千卡/千克） 天然气 (8900 千卡/立方米) 柴油 (11,900 千卡/升)	¥0.03/个 ¥0.03/个 ¥0.06/个 ¥0.08/个
颜料（可选）	¥12/千克颜料； 1千克可生产 大约3000–4000个托盘	大约¥0.003–0.004

$1（美元）=¥7.2（人民币）

Large Egg Carton Machine vs. 4-Side Egg Tray Machine

The main difference between 4-side and 8-side egg tray machines is production capacity and the scale of the production line.

特点	4-Side Machine	8-Side Large Machine
Production Scale	Small to medium	Medium to large
Typical Capacity	Lower capacity range	4,000–7,000 pcs/h
Initial Investment	更低	更高
Production Volume	Suitable for growing businesses	Suitable for large commercial production
Drying Requirement	更低	更高
Factory Planning	Relatively simple	Requires more complete line planning

A 4-side machine can be considered when the target output is lower or the initial investment needs to be controlled. An 8-side machine is designed for buyers who need higher continuous production.

The final choice should be based on target sales volume, raw material availability, factory conditions, and production budget, rather than capacity alone.

蛋盒模具可以定制吗？

是的，Shuliy支持定制蛋盒，包括印刷公司LOGO或制作独特形状。我们先提供设计图纸供审核，之后生产模具。

• 尺寸和规格： 模具可以根据蛋盒容量（例如，6、10、12个蛋）进行定制，包括蛋的间距、托盘厚度等。
• 特殊形状： 可为不规则蛋盒或特定蛋（如鸭蛋、鹅蛋）定制模具。
• 材料选择： 可选择铝合金、塑料或不锈钢模具，依据产量、耐用性和脱模需求。

一台蛋盒机可以使用不同模具吗？

• 标准设计： SL系列大型蛋盒机采用模块化模具结构，便于快速安装和拆卸。
• 多尺寸： 通过更换模具，机器可以生产不同尺寸的蛋盒，如6、10、12个蛋或定制尺寸。
• 材料选择： 模具通常为铝合金、塑料或不锈钢，依据生产量、耐用性和脱模需求选择。

定制模具注意事项

• 提前提供蛋盒尺寸、托盘数量和厚度要求。
• 不同模具材料的耐磨性和使用寿命不同，应根据产量和干燥方式选择。
• 定制模具需要一定的生产周期，但使用寿命长，回报稳定。

What Information Do You Need Before Buying a Large Egg Carton Machine?

Before requesting a quotation, prepare the following information:

1. Target production capacity – such as 4,000, 5,000, or 7,000 pcs/h.
2. Product type – egg tray, egg carton, fruit tray, or other molded-pulp products.
3. Product specification – egg quantity, dimensions, and mold requirements.
4. 原材料 – waste paper, cardboard, or other pulp materials.
5. Working hours – daily operating hours and expected production days.
6. Factory dimensions – length, width, and height.
7. Local power supply – voltage and frequency.
8. Available fuel – coal, wood, natural gas, diesel, or other energy sources.
9. Drying preference – sun drying, brick kiln drying, or multi-layer drying.
10. Destination country – used to determine shipping and electrical configuration.

Providing this information allows the manufacturer to recommend a suitable machine model and configure the complete production line more accurately.

为什么选择Shuliy？

• 高容量： SL系列蛋托机产量为4,000–7,000件/小时，适合中大型工厂。此外，我们还能生产特殊形状托盘，例如 鞋托盘成型机, 水果托盘成型机， 电子包装托盘成型机, 和 c咖啡托盘成型机等。
• 稳定耐用： 厚碳钢框架和工业级材料确保连续运行超过10年。
• 模具灵活： 支持不同尺寸和材料的模具更换或定制，以满足多样化市场需求。
• 高效设计： 八面旋转成型实现连续吸浆、成型、脱水和脱模。
• 节能 产出与能耗平衡，单个蛋盒能耗低，浆料和水的使用可控。
• 兼容干燥系统： 可与砖窑或多层干燥机配合，实现全自动生产线。
• 国际认证： ISO 9001、CE、SGS和TUV认证，确保质量和出口安全。

常见问题
