8면 계란판 기계
| 브랜드 | 슐리 기계 |
| 모델 | SL-4000-4X8; SL-5000-5X8; SL-7000-6X8 |
| 용량 | 4000-7000개/시간 |
| 전력 | 95kw; 120kw |
| 전압 | 380V, 50HZ |
| 크기 | 참조 기술 매개변수 표 |
| 보증 | 12개월 |
이제 프로젝트 관리자에게 기술 세부 정보를 문의할 수 있습니다.
그 8면 계란 트레이 기계대형 계란 트레이 성형기로도 알려진 이 기계는 8면 회전 드럼이 장착되어 있습니다. 고속의 연속 생산이 가능하여 중대형 생산 요구가 있는 공장에 특히 적합합니다.
SL-4000-4X8 can produce about 4000pcs egg shells per hour. Egg plate molds can be customized according to the buyer’s requirements. This equipment can be continuously produced and ensures production capacity. In addition, because the whole production process is recycled waste paper, no pollution sources, so it is called green environmental protection machinery.
Model SL-5000-5X8 egg tray machine can produce about 5000pcs egg trays per hour. It is 45 angle and an eight-plate rotary tray machine. Eight plates form a board, and all systems can be connected. This transfer arm makes a 90-degree reciprocating motion. The working efficiency is very high.
그 SL-7000-6X8 is our company’s highest-capacity egg tray forming machine, with an output of up to 7,000 pieces per hour. It features an 8-sided rotary drum with 6 egg tray molds on each side, making it ideal for efficient, large-scale production in big factories.
Why Choose an 8 Side Egg Tray Machine for Large-Scale Production?
- 제작된 재료 두꺼운 탄소강 내구성과 강한 하중 용량을 위해
- 알루미늄 합금 금형(옵션: 스테인리스 스틸), 경량이며 건조 및 교체가 용이함
- 비점착성, 고온 테플론 코팅 가능
- 내마모성 베어링이 장착된 고강도 강철 전송 시스템
- 부식 방지 스테인리스 스틸 유압 파이프 및 구리 밸브
- 방수 및 방진 스테인리스 스틸 제어 캐비닛
- 8면 회전 디자인으로 잦은 정지 없이 연속 운영 가능
- 자동 건조 및 적재 시스템과 호환 가능
- 산업용 등급의 재료는 보장합니다 10 수년간의 지속적인 사용
How Does an 8 Side Egg Tray Machine Work? Structure and Production Process
8면 트레이 제조기는 주로 다음으로 구성됩니다. 펄핑 시스템, 성형 시스템, 건조 시스템 및 포장 시스템.
8 Side Egg Tray Machine Structure
An 8면 계란 트레이 기계 uses an octagonal rotary drum as its forming core. Each of the eight drum faces carries a row of aluminum forming molds, and the whole drum rotates continuously through the pulp vat, vacuum forming station, and ejection zone.
The mold layout depends on the model:
- SL-4000-4×8: 4 molds per side × 8 sides = 32 forming molds
- SL-5000-5×8: 5 molds per side × 8 sides = 40 forming molds
- SL-7000-6×8: 6 molds per side × 8 sides = 48 forming molds
This high-density layout is what allows the machine to reach 4,000–7,000 pieces per hour. The drum is driven by a heavy-duty gear system with wear-resistant bearings. A vacuum pump, air compressor, PLC control cabinet, and transfer conveyor are integrated into the same frame.

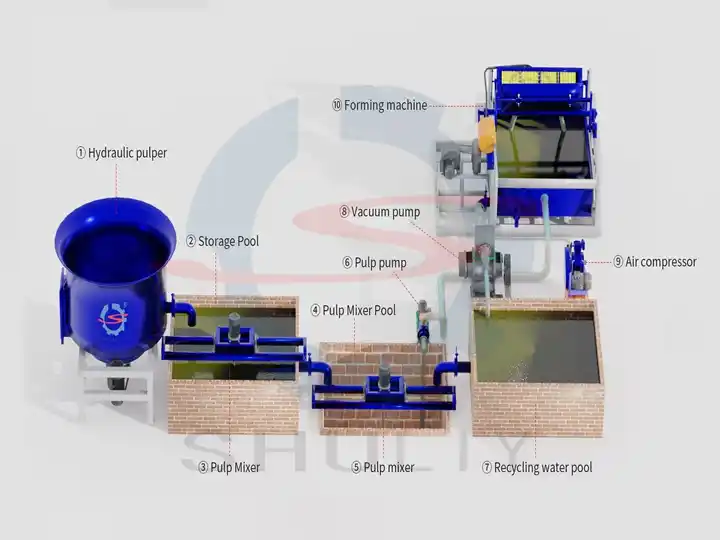

The complete production system also includes:
- 펄핑 시스템 – hydrapulper, pulp pump, and consistency regulator
- 성형 시스템 – 8-sided rotary drum with vacuum molds
- 건조 시스템 – sun drying racks, brick kiln, or multi-layer metal dryer
- Packing system – hydraulic press and strapping unit
생산 공정
Step 1: Pulp Preparation
Waste paper, cardboard, or pulp board is loaded into the hydrapulper with water at a ratio of about 1:4. The blades run for 15–20 minutes until the mixture becomes a smooth fiber slurry. The pulp concentration is adjusted to 2–3% before it is pumped into the machine’s pulp tank.
Step 2: Mold Immersion and Vacuum Forming
As the 8-sided drum rotates, each mold face dips into the pulp tank one after another. A vacuum pump draws pulp fibers onto the mold screen, shaping the wet tray inside the mold cavity. Because eight sides are working in sequence, forming never stops.
Step 3: Dewatering
After leaving the pulp tank, the formed tray stays on the rotating drum for a few seconds. Gravity and vacuum suction remove excess water. The wet tray still contains about 50–60% moisture when it reaches the ejection point.
Step 4: Automatic Transfer
At the transfer position, the vacuum is released and positive air pressure blows the wet tray off the forming mold onto a transfer conveyor or a transfer mold. The empty mold then continues to the next forming cycle.
Step 5: Drying
Wet trays move into the drying system. Depending on the setup, this can be:
- Sun drying – trays dry on racks in open air for 2–3 days
- Brick kiln dryer – hot air at 80–120°C dries trays in 45–90 minutes
- Multi-layer metal dryer – automatic belt dryer with the smallest footprint
Moisture is reduced from 50–60% to below 12%.
Step 6: Stacking and Packing
Dried trays are stacked and fed into a hydraulic packing machine. The press compresses the stack by 30–40% and straps it for transport. This reduces shipping volume and warehouse space.

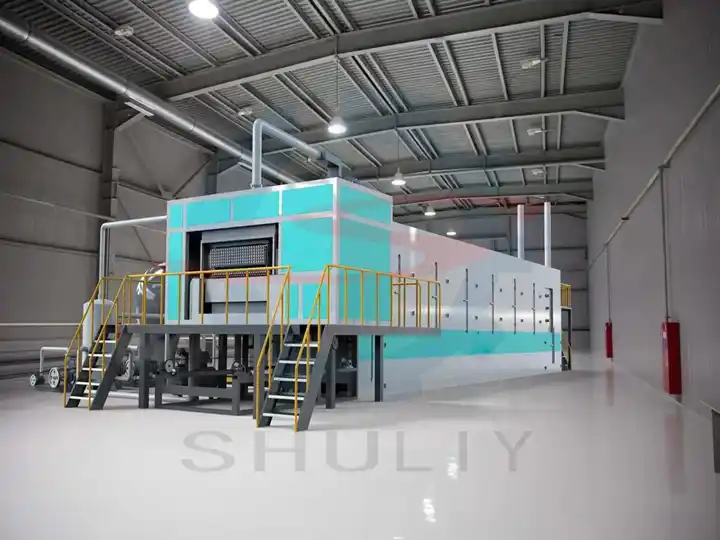

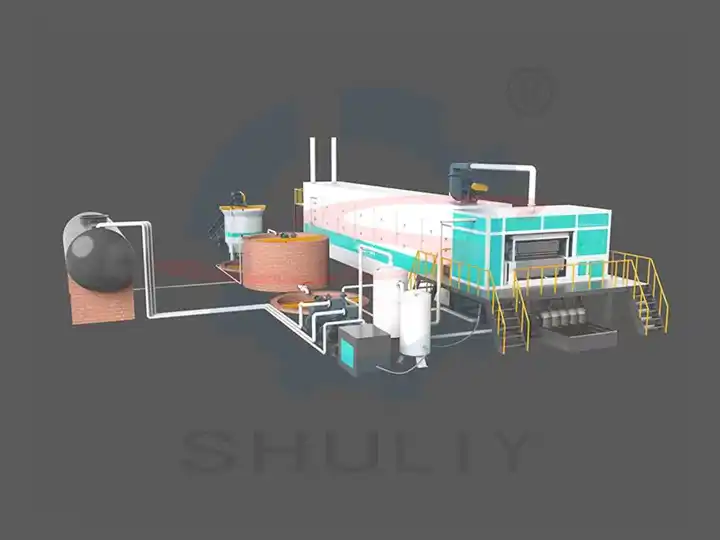

3D Rendering of the Egg Tray Production Line – Customer Case Reference
8 Side Egg Tray Machine Specifications and Capacity Comparison
| 모델 | SL-4000-4X8 | SL-5000-5X8 | SL-7000-6X8 |
| 용량 | 4000개/시간 | 5000개/h | 7000개/h |
| 전력 | 95kw | 95kw | 120kw |
| 전압 | 380V, 50HZ | 380V, 50HZ | 380V, 50HZ |
| 무게 | 7000kg | 8000kg | 10000kg |
| 펄프 사용량 | 320kg/시간 | 400kg/h | 480kg/h |
| 물 사용량 | 640kg/시간 | 800kg/h | 960kg/h |
| 크기(mm) | 3250*2300*2500 | 3700*2300*2500 | 3200*2300*2500 |
How to Choose the Right Drying System for Egg Trays?
Sun Drying – Cost-Effective Option for Small Production
| 항목 | 지역 |
| 기계 면적 | 30–50 m² |
| 건조장 면적 | 1000 m² |
박스형 계란판 건조기
| 모델 | 길이 (m) | 너비 (m) | 높이 (m) |
| SL-4×8 | >65 | >15 | >3 |
| SL-5×8 | >65 | >15 | >3 |
| SL-6×8 | = 80 | >15 | >3 |
| SL-8×8 | = 80 | >15 | >3 |
다층 건조기 -High-Capacity Production
| 모델 | 길이 (m) | 너비 (m) | 높이 (m) |
| SL-4×8 | 27.5 | 6 | 3.6 |
| SL-5×8 | 27.5 | 6 | 3.6 |
| SL-6×8 | 33.5 | 6 | 3.6 |
How to Make Egg Trays with an 8 Side Egg Tray Machine?
원자재는 주로 밀짚 펄프, 슬러리, 대나무 펄프, 목재 펄프, 폐지판, 폐지 상자용 종이, 폐 백지, 제지 공장 폐 펄프 폐기물 등입니다. 원자재는 다양한 출처를 가지고 있으며 수집하기 쉽습니다. 계란 트레이 기계는 주요 기계입니다. 계란 트레이 생산 라인.
펄프 풀에서 펄프를 성형기로 공급합니다. 펄프는 진공 시스템에 의해 흡수되고, 장비의 금형에 의해 성형됩니다. 물은 흡수되어 진공 펌프를 통해 다시 펄프 풀로 운반됩니다. 물은 재활용될 수 있습니다.
몰드가 수분 슬러리를 흡수한 후, 전이 몰드는 공기 압축기를 통해 배출됩니다. 완제품은 성형 몰드에서 전이 몰드로 불려지고, 이후 전이 몰드를 통해 밖으로 나갑니다.
How Much Does It Cost to Produce Egg Trays? Cost Analysis
| 비용 항목 | 설명 | 트레이당 단가 (RMB) |
| 원자재 | 1톤의 폐지는 12,000–15,000개의 쟁반을 생산할 수 있습니다. (쟁반 무게 기준). 쟁반당 80g 기준: 1,000,000g ÷ 80g = 12,500개의 쟁반 폐지 가격: ¥1500/톤 → 1500 ÷ 12,500 = ¥0.12 per tray | ¥0.12 |
| 노동 | 태양 건조: 6명 노동자; 기계 건조: 4명 노동자. 중국에서, 노동은 종종 작업량에 따라 계산됩니다: 트레이당 약 ¥0.02. | ¥0.02 |
| 전기 | 용량과 전력 소비에 따라 다릅니다. 더 높은 생산량은 트레이당 더 낮은 비용을 의미합니다. | ¥0.02 |
| 건조 연료 | 석탄 (5000 kcal/kg) 목재 (4000 kcal/kg) 천연 가스 (8900 kcal/m³) 디젤 (11,900 kcal/리터) | ¥0.03/개 ¥0.03/개 ¥0.06/개 ¥0.08/개 |
| 안료 (선택 사항) | ¥12/킬로그램 색소; 1킬로그램으로 생산 가능 약 3000–4000 트레이 | 약 ¥0.003–0.004 |
환율 변환: $1(USD)=¥7.2(RMB)
Is an 8 Side Egg Tray Machine a Profitable Investment?
환경 친화적: 사회가 발전함에 따라 점점 더 많은 사람들이 환경 보호 문제에 주목하고 있습니다. 환경은 사람들이 생존을 위해 의존하는 것입니다. 따라서 우리는 다양한 경로를 통해 환경을 보호해야 합니다. 폐지 재활용은 환경을 보호하는 방법 중 하나입니다. 생산 과정에서 오염이 발생하지 않습니다.
기능: 계란 트레이의 주요 기능은 충격 흡수입니다. 깨지기 쉬운 물품과 같은 개별 항목을 분리하여 운송 또는 보관 중 물품의 파손 비율을 줄입니다.
가격: 계란 트레이 기계는 선택할 수 있는 여러 모델이 있습니다. 소규모로 사업을 시작하고 싶다면, 이것은 좋은 선택입니다. 투자 비용이 높지 않으며, 기계가 생산을 시작하면 투자금을 회수할 수 있습니다. 정저우 슈리 기계에서 합리적인 가격으로 계란 트레이 기계를 판매합니다.
8 Side Egg Tray Machine Projects and Customer Applications
Egg Tray Machine Shipping Cases and Global Projects
2,500 pcs/h Egg Tray Production Machine Installed in Sierra Leone
In August 2025, Shuliy completed the installation and commissioning of a 2,500 pcs/h egg tray production machine for a customer in Sierra Leone. The customer runs a food packaging business and wanted to turn locally collected waste paper into biodegradable egg trays.
Equipment supplied:
- SL-2500-3×4 egg tray forming machine
- Pulping system with 2 m³ capacity
- Brick house dryer with diesel burner
- Hydraulic packing machine
Project results:
- The line reuses waste paper as its main raw material
- Production runs automatically from pulping to packing
- Shuliy engineers provided on-site installation and operator training
- The customer is now producing egg trays for the local market
Why Choose Shuliy 8 Side Egg Tray Machine?
Factory-Direct Manufacturing
Shuliy designs and builds every 8 side egg tray machine in its own factory. This direct control keeps quality consistent and removes middleman costs. Buyers deal with engineers who understand the machine from frame to control system.
Customized Line Configuration
An 8-side machine is rarely used alone. Shuliy matches the forming machine with the right pulper, dryer, and packing equipment based on your target output, workshop size, and local fuel availability. You receive a layout drawing before production starts.
Proven Rotary Technology
The 8-sided rotary drum uses vacuum forming with synchronized mold rotation. This design reduces stop-start wear and raises output to 4,000–7,000 trays per hour. Mold replacement takes less than 30 minutes.
Global Installation Experience
Shuliy has shipped and installed egg tray machines in Africa, the Middle East, South America, Australia, and Southeast Asia. Engineers provide online or on-site installation and train your operators.
Certified Equipment
Machines meet CE and ISO standards. Electrical parts use internationally recognized brands, and motors meet standard efficiency ratings.
Long-Term Support
- 12-month warranty on main components
- Lifetime technical support
- Spare parts supply with fast dispatch
- English, French, and Spanish service teams
자주 묻는 질문
What is the difference between a 4-side and an 8-side egg tray machine?
A 4-side machine has four forming faces on the rotary drum and is ideal for 2,000–3,000 pcs/h. An 8-side machine has eight forming faces and higher mold density, making it suitable for 4,000–7,000 pcs/h.
How many workers are needed to run an 8 side egg tray machine?
A complete 8-side line normally needs 3–5 workers per shift. One operator monitors the control panel, one handles raw material feeding, and the rest manage drying and packing.
What is the power consumption per 1,000 trays?
Power use is approximately 0.0125–0.013 kWh per tray, or 12.5–13 kWh per 1,000 trays. Drying fuel is calculated separately based on coal, diesel, gas, or electricity choice.
Can the 8 side machine produce products other than egg trays?
Yes. By changing molds, the same machine can produce fruit trays, shoe trays, wine bottle trays, electronic component trays, and disposable food containers.
How much floor space does an 8-side egg tray production line need?
The forming machine itself needs about 30–50 m². With a brick kiln dryer, the total workshop area is usually 600–800 m². A multi-layer metal dryer reduces this to 200–300 m².
What is the typical delivery time after placing an order?
Standard models need 20–30 working days. Custom voltage or special mold designs may add 5–10 working days. Sea shipping time depends on the destination port.
What spare parts should be kept in stock?
We recommend keeping mold screens, vacuum pump seals, air compressor filters, bearings, and conveyor belts in stock. These parts wear gradually and are easy to replace.
Can the machine run in hot and humid climates?
Yes. The electrical cabinet is waterproof and dustproof. Stainless steel parts resist corrosion. In very humid areas, we recommend a metal dryer instead of natural sun drying.
